Kilian's Robot Shop of Horrors - 10/24/2003

Click thumbnails for a larger view.


Jeff's engine/generator project

I (Jeff) have been talking about making an engine/generator for long range robotics. I have played with a 3HP 2-cycle engine and a car alternator. That works great but it is big and requires manual starting. I started a project with a 1HP 2-cycle engine and a DC motor for a generator. I never finished that. This is my latest attempt. It is a 1HP (1-1/2HP?) 2-cycle engine and an EV-Warrior DC motor. I wanted to use a toothed belt but I can't find my box of pulleys. I found these #25 sprockets. The engine and motor together will be about 11 inches long and about 7 inches high. Hopefully the motor will act as a starter and a generator.

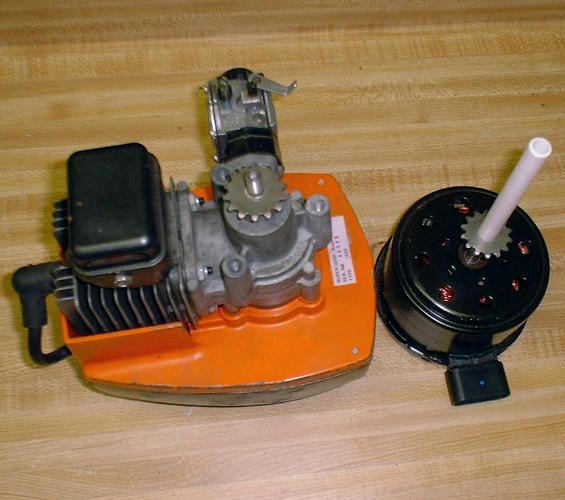

Jeff's new engine/generator
project. This is the
approximate mounting layout.
Alan's mill, about to be
converted back to a lathe.
Alan set up the lathe so I
could enlarge the holes in my
sprockets. I needed to go
from 3/8 to 7/16.
My drill bit was larger than
the drill chuck. So Alan set
it up with a boring bar.

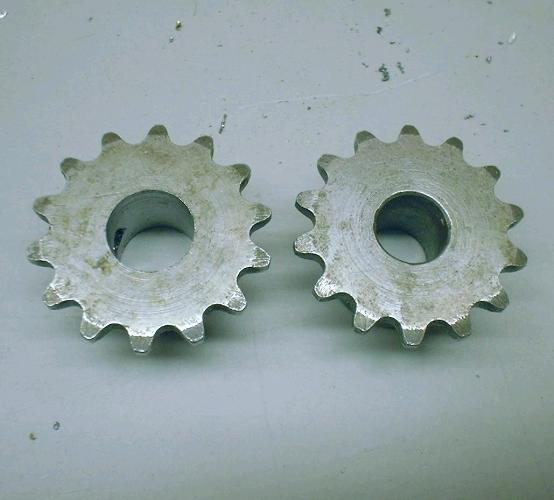

The sprocket on the left is
the new 7/16. The one on the
right is the original 3/8.

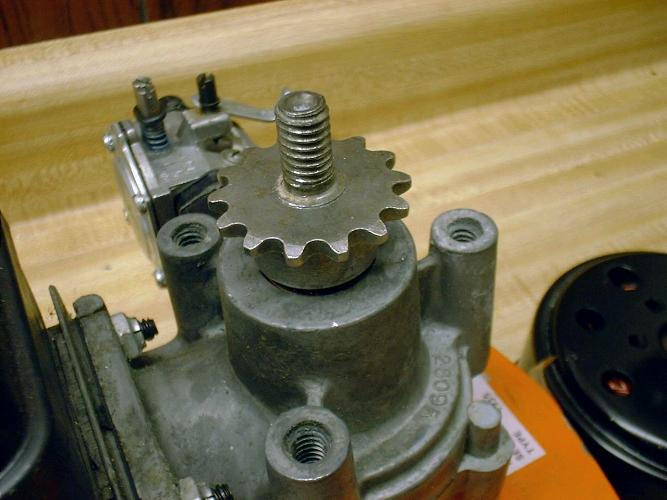

A new sprocket on the engine.
A new sprocket on the motor.
I used a nylon tube as a
spacer between the metric
motor shaft and the 7/16 hole
in the sprocket.
The engine and motor together.


Alan and Bruces's stepper motors

Bruce Shapiro brought over
his Anemone made from stepper
motors.
The bottom looks like this.
This is what happens if you
connect a 3 Volt 100 Amp
supply to a 5 Volt 5 Amp
supply. I missed all the
smoke.
So they decided to check a
few things before plugging it
in again.
Jeff was running the motors
with his simulator program.
Alan was running the motors
with his C programs.

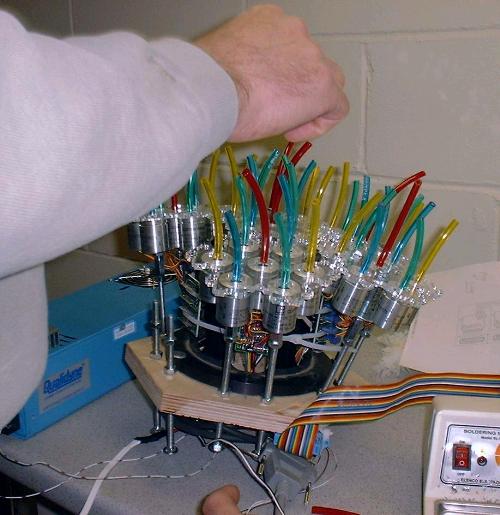

Lining up all the tubes to a
home position.
When it stops they all come
back to home position.
Measuring for wire and
pedestal length.
More measuring.
Jeff made this test module
with LEDs. It connects in
place of the motors on the
driver board.

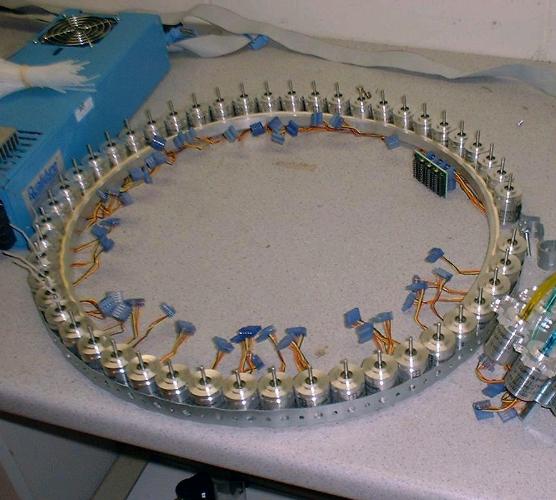

Alan made a ring of stepper
motors.


In the kitchen

Peter Kilian got this small
skull as a prize for a
presentation he made at the
Science Museum.
Alan is installing new
cabinets in the kitchen.
It is that new cardboard
veneer you have been hearing
about. I knew cabinet
construction was getting
cheaper. But I think he
should have gone to another
store...
