Kilian's Robot Shop of Horrors - 05/23/2003

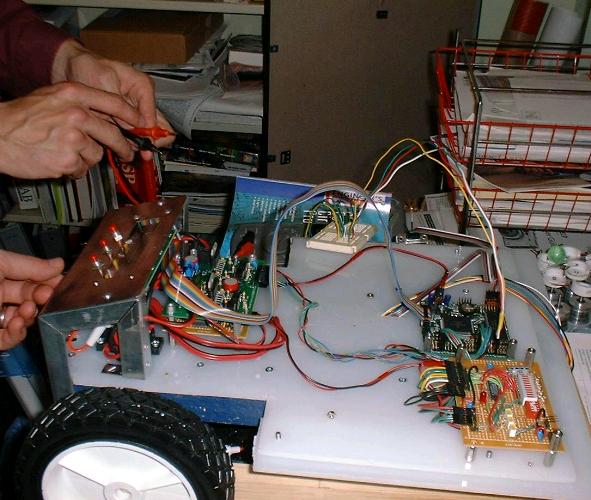

![]() Terry Schumacher brought his robot. |
![]() Alan is checking the PWM signal. |
![]() Terry is baffled. It turned out to be slow opto isolators. |
![]() Terry doing some programming. |
![]() This is Jeff Martin's temperature sensor project. |
![]() The board on the left has 16 thermocouple inputs. The board on the right talks to multiple sensor boards and stores the data. |
![]() Debugging the boards. |
![]() Making some modifications. |
![]() Jeff writing software. |

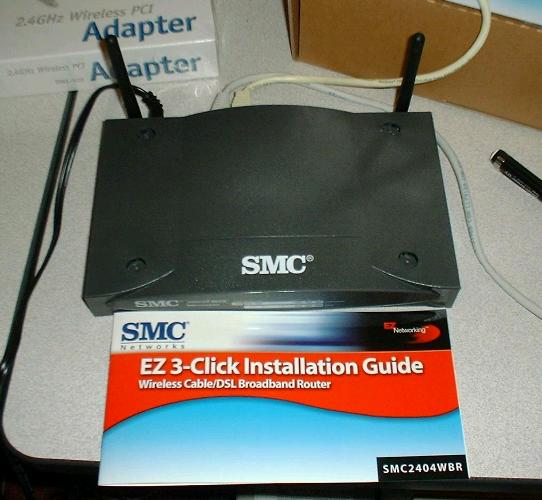

![]() Jeff Sampson donated a wireless network box. So we have wireless ethernet at RSOH now. |
![]() Alan passed out from all the excitement. |
![]() Jeff has this new micro tower case. It is about 3/4 the size of the mid tower behind it. |
![]() Some of the wood frame for Research 3. One is bare wood and one has white primer. You can see it gets painted green. |
![]() Here is the new Resaerch 3 sitting in front of Jeff's house. |
![]() The battery box on the bottom can hold two 12V 26Ahr batteries. |

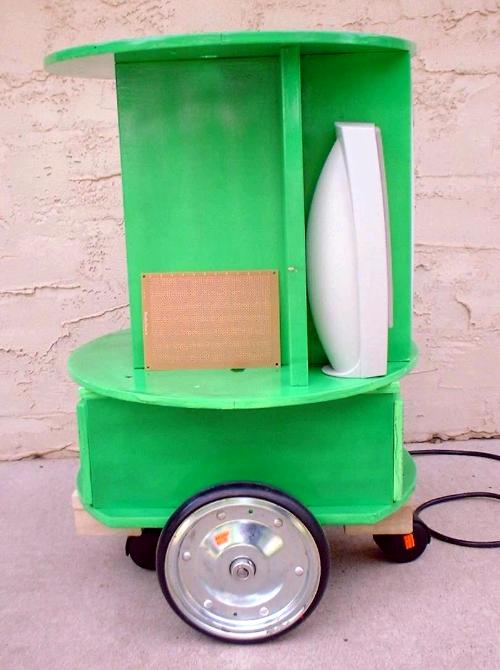

![]() The electronics will go where the Radio Shack perf board is. |
![]() All connection to the computer are made on the back. |

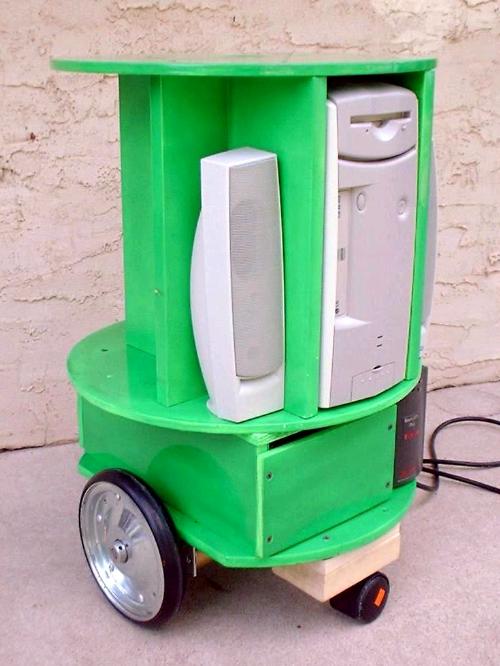

![]() The 12 volt invertor got replaced with an APC 280S UPS. The UPS is connected to one of the big batteries in the battery box. |
