Kilian's Robot Shop of Horrors - 04/22/2003

Click thumbnails for a larger view.

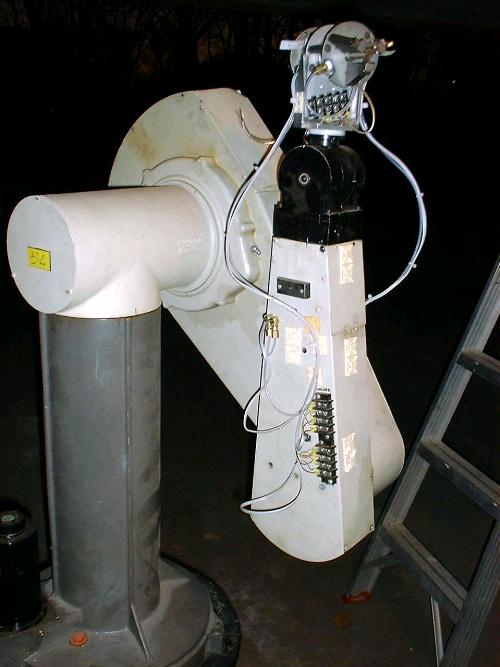

The task at hand

We are going to take...
that robot arm, and...

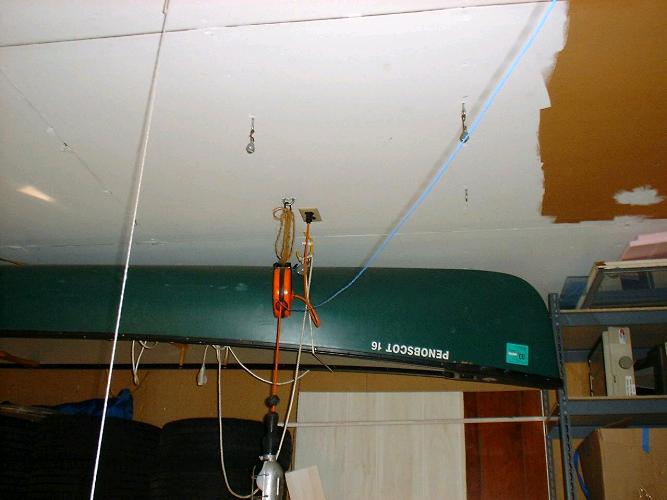

put it there...


First, a trip to the hardware store

Peter piled in the back
seat.
Just like Hank Hill, we had
to check out the lawn mowers.
Doo, dee, doo...
We need some of these. And
some of those.


Some prep work

This thing needs some way to
bolt it to the ceiling.

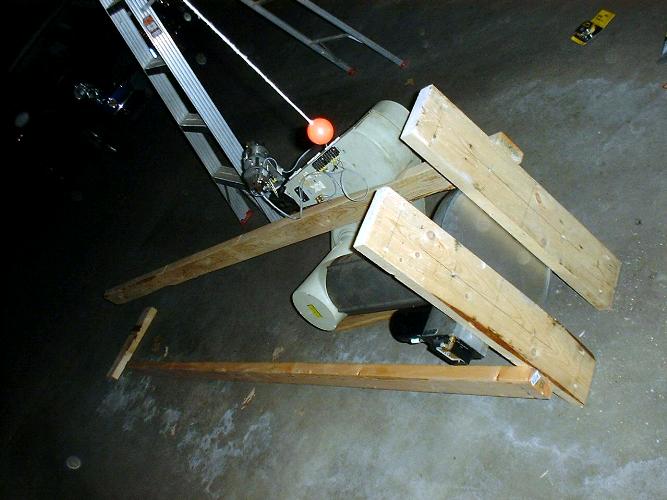

Alan makes some supporting
beams out of 2x6s.

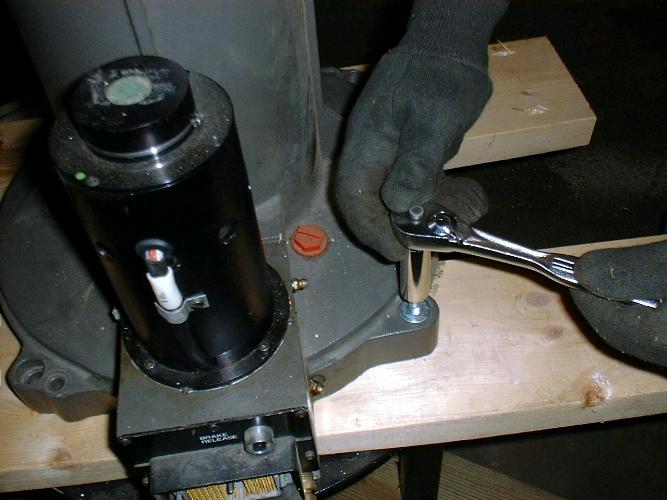

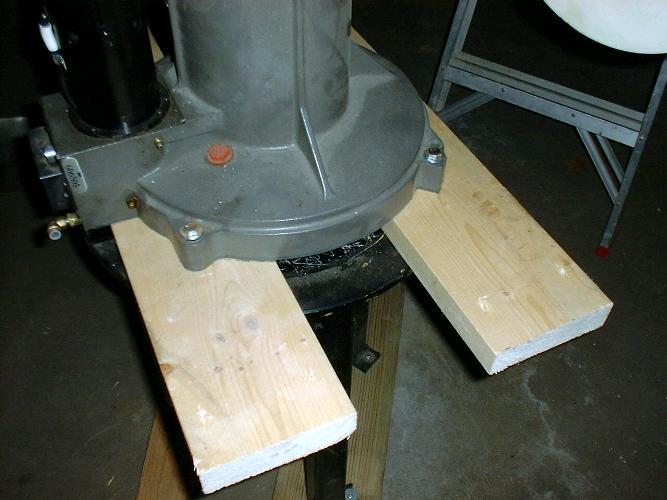

They are bolted to the base
of the arm with lag bolts.
Okay, that looks good. Now
just to flip it up there...

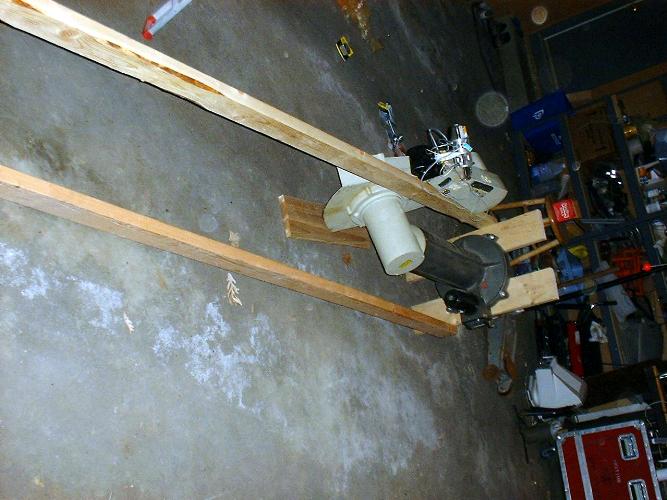

It was real darn heavy. So we
decided to make some stilts
out of 2x4s.
Okay, now just flip it up
there...


Move it into place

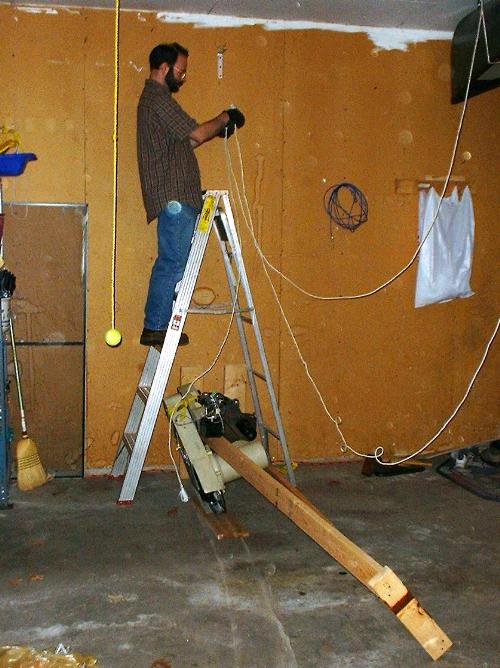

Well, it was real darn heavy.
So instead of just flipping
it up there, we decided to
hoist it up the wall.

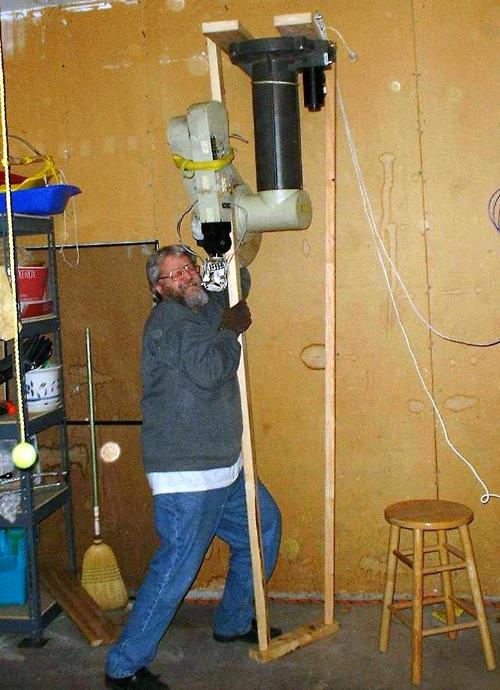

Jeff is pretending it was
real hard to manage.

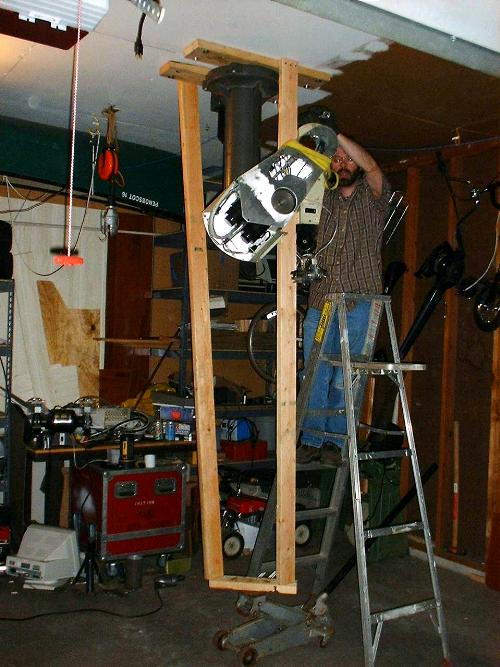

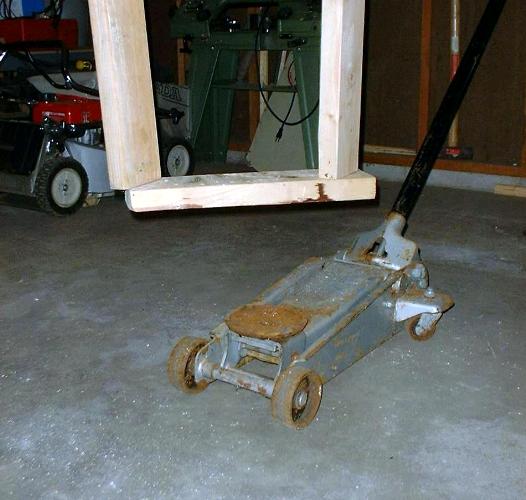

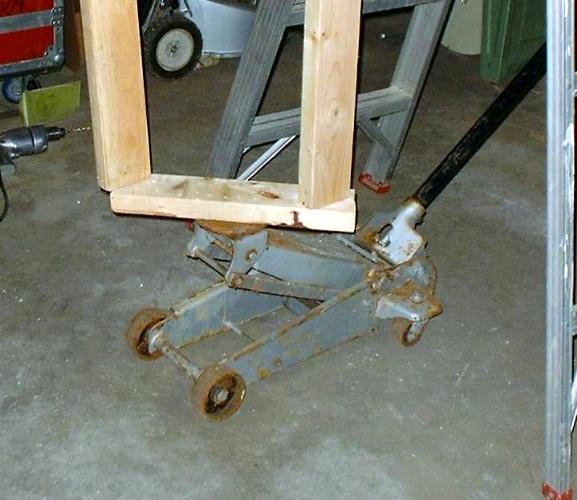

We let it down on a floor
jack. It was very easy to
balance. AS LONG AS IT WASN'T
MORE THAN ABOUT 3 DEGREES
FROM VERTICAL!!!
The theory was we would just
roll it across the floor...

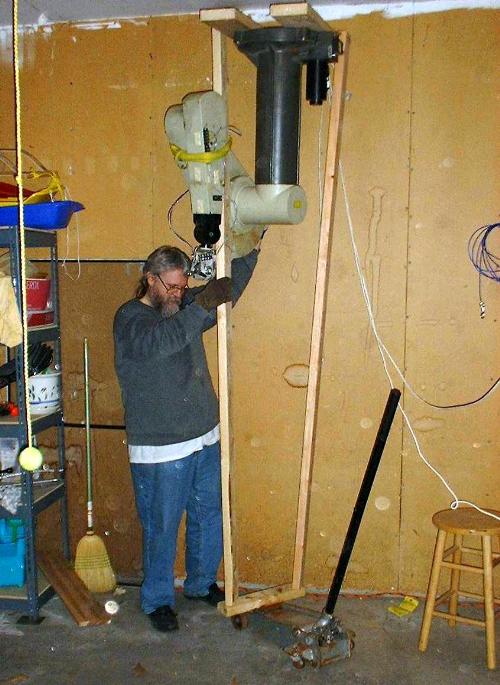

Alan would jerk the floor
jack 1 to 3 inches. Then
Jeff would carefully
rebalance it before it had a
chance to kill anybody. It
literally took us 30 minutes
to move 20 feet across the
floor.

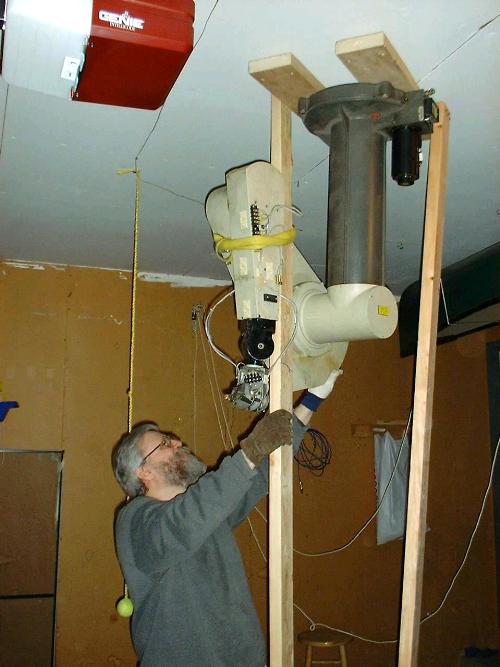

When we got it into place we
jacked it up against the
ceiling.

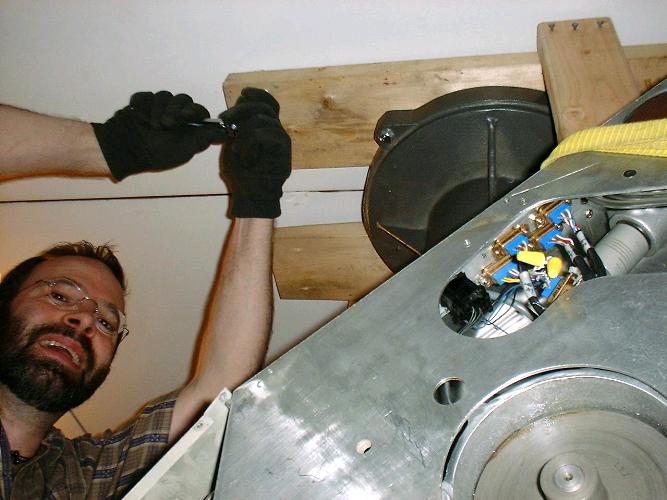

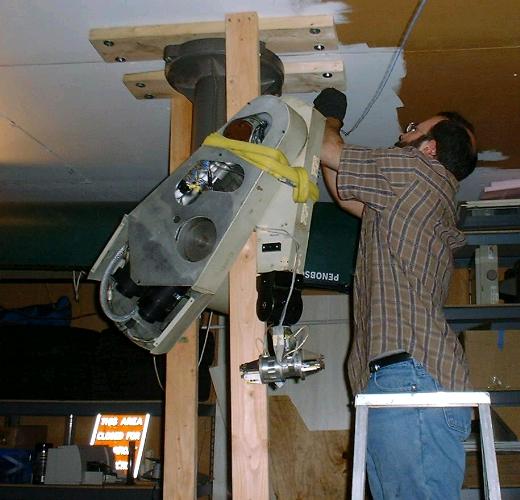

Alan started bolting it
into place. These are lag
bolts again.
When I nod my head, hit it...
Finishing the last bolt.
Then we let the jack down.

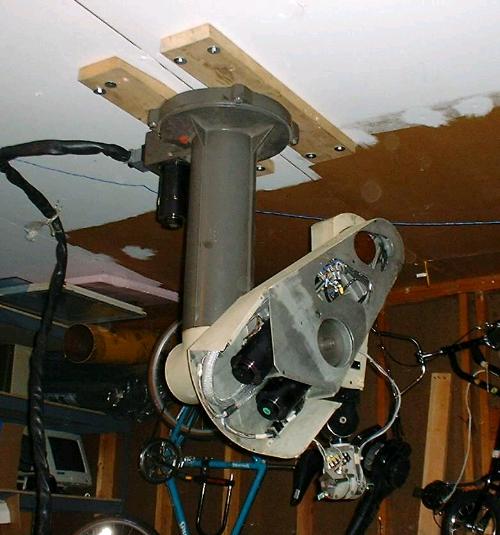

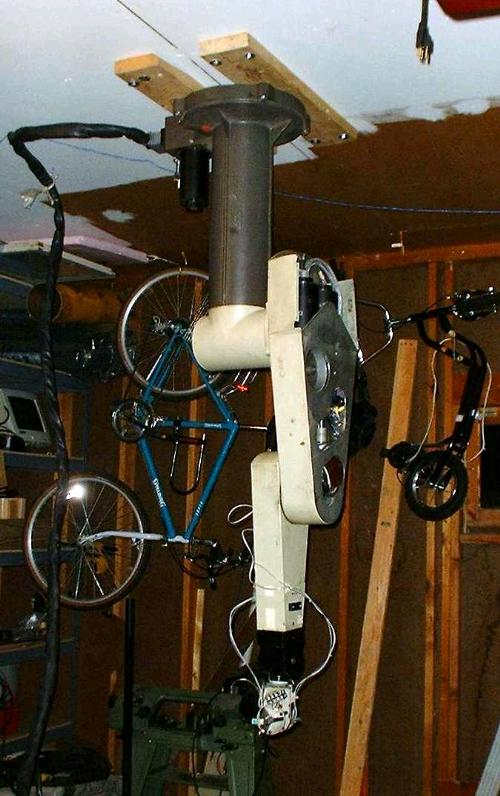

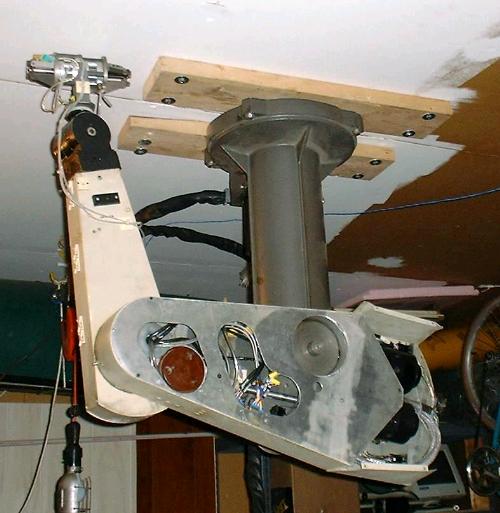

Look Ma. No hands.

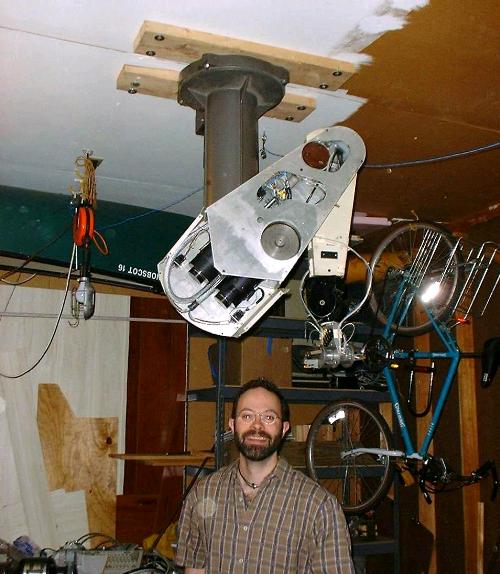

Alan is brave enough to
stand under it.

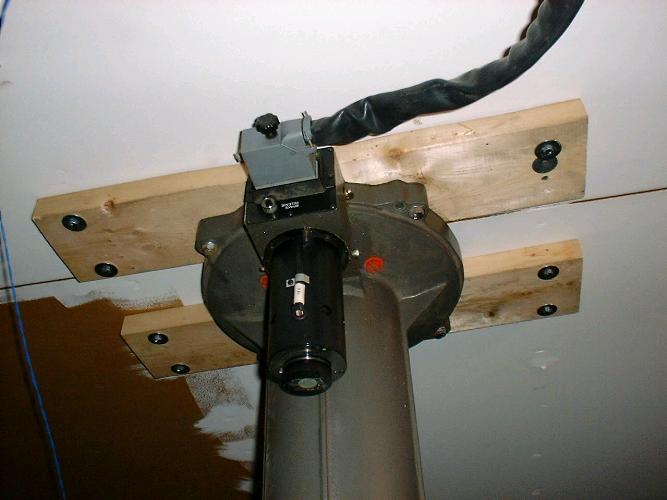

The lag bolts are screwed
into the ceiling joists.


Now for a test drive.

This is the parked position.
This is the fully extended
position.

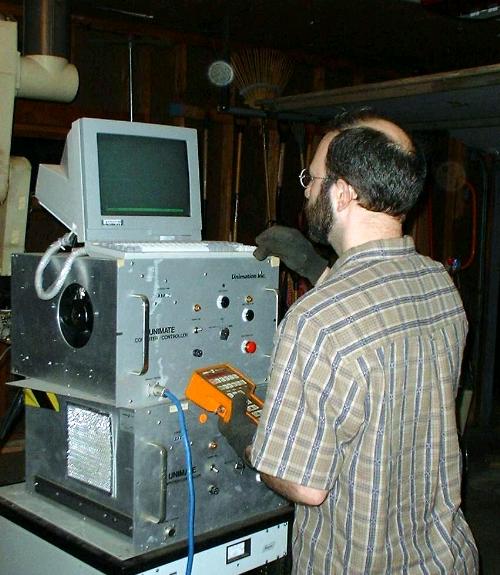

Alan does some manual
driving.
It can reach all the way up
to the ceiling.
Checking the position numbers.

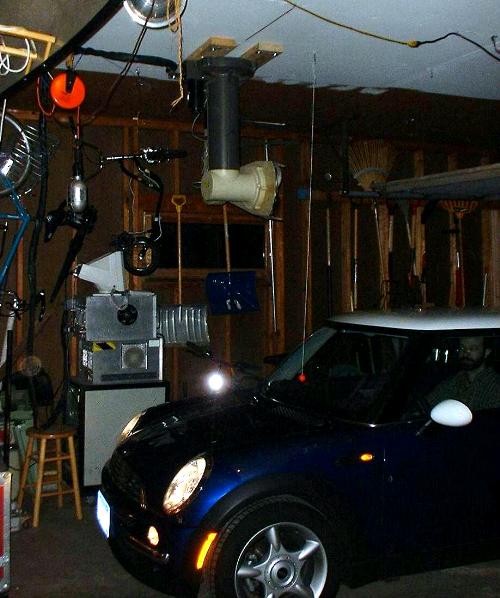

And Alan's car still fits
in the garage.
