Special edition at Brynn's house - 03/07/2003

Click thumbnails for a larger view.


Doing some machining

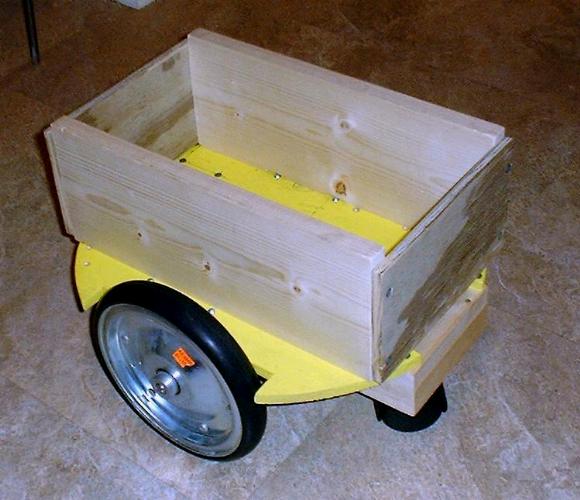

This is my (Jeff) new
Research 3 robot. It is a
rebuild of my Research 2
robot.
This is Brynn's new mill.
This is the one that he and I
moved into his basement a few
RSOH episodes ago.

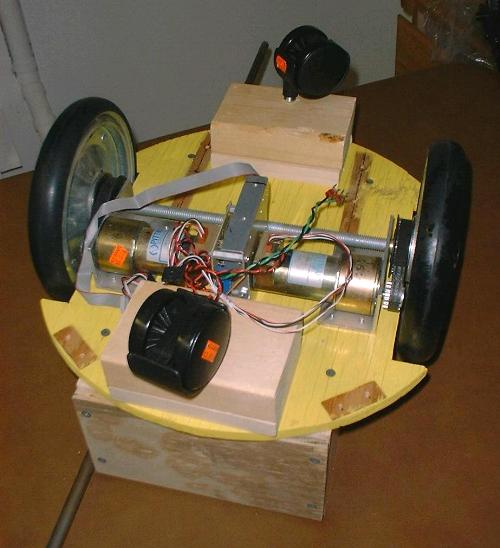

This is the old design. The
new one will be about 2
inches larger in diameter.
The wheel is driven from a
Pittman gear motor through a
belt.
We started by trying to
square off the end of a 1/2
inch steel rod.
After many failed attempts it
occured to us to tighten all
the lockdown nuts. :-)
Whoops! Brynn did something
just a little TOO stupid. :-)

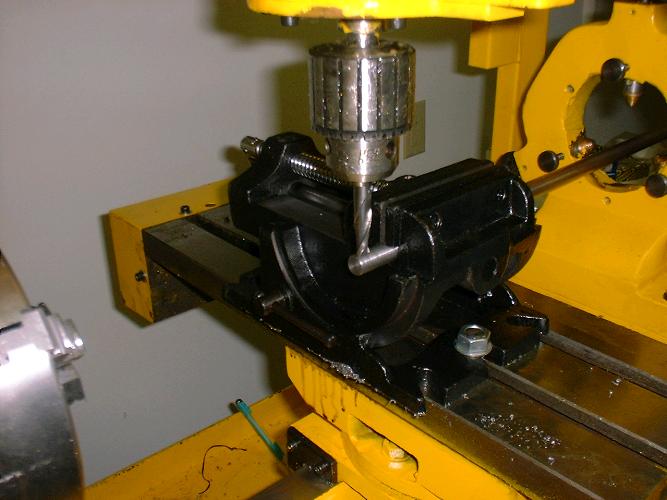

Now we have to cut a flat on
the shaft.
One end of the finished shaft.
