Kilian's Robot Shop of Horrors - 04/12/2002

Click thumbnails for a larger view.

We started out by running a cable from the office area to the workshop. We installed a network card in the computer. After some playing around we had Linux talking to the Internet.
Brynn bought some high precision red color filters. If I remember right these are tuned to the color of a helium neon laser. So we had to look at everything through these filters to see how it looked. The reasoning is that these can be used to pass laser light and block the ambient light. But you can see from the pictures that white light goes through also.
After things got boring we started taking things apart.
-- Jeff Sampson

Networking

Making an ethernet cable so
we have an Internet
connection in the workshop.

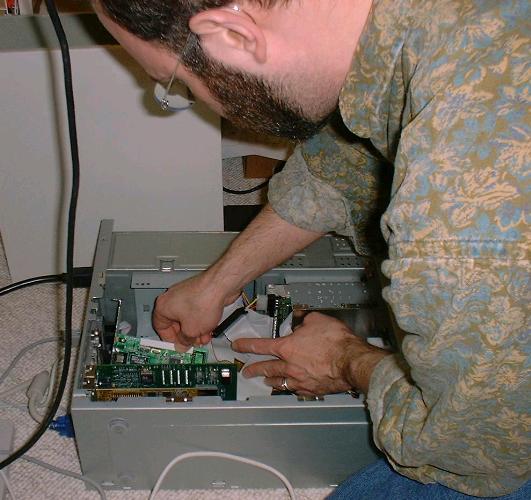

Installing a network card in
the computer.

Brynn's new color filters

Brynn bought these high tech color filters for his laser ranging.	This is what Alan looks like through a red filter.	The light through the filter.	A diet Mountain Dew can through the filter.
Here is a red book with yellow and white lettering.	The same book through the filter.	Bryan is taking a picture with the filter.

Taking things apart

Alan is taking an HP plotter apart.	The insides of the plotter. This one has stepper motors.	One of the slide mechanisms with various pulleys and cables.	This RAM chip was missing its cover. But it aparently still worked.
Taking a hand scanner apart.

Other

We had the Guinea Pig out for
awhile.
